Solar energy storage system

DIY Solar System mpp solar LV6548 Server Rack battery storage

240v split phase inverter

Here we are show a simple and cheap alternative mpp solar LV6548 inverter. This LV6548 inverter alternative inverter has even cheaper priced them mppt. If you want spend less money, this could be a best solution for you as a standard off grid system. Batteries are also very important. Coremax server rack 48v battery system will helps you save a huge spend. This server rack battery system combine with numbers battery modules, which is 48v 100Ah. as it is a scalable modular, it's allow DIY user add more pcs for one system. Max support 16pcs. Which means you can build a 48v 1600Ah battery system with coremax 48100. The system rated 16*5kwh=80kwh. This 80kwh is big enough for a normal residential usage.

DIY solar energy storage system is getting more and more popular. Because there are many cheap and fast solar part available and easy to combine a solar system by end user, especially for simple off grid system. Like small 48v low voltage off grid system. DIY user just need a basic calculation and can easy figure out how many solar panels required, and which is best suitable inverter. Also how many kwh batteries is needed for this small system. Of cause, if you don't know how, can just contact one of our guys from Coremax. And we will help out.

Alternative mpp solar LV6548

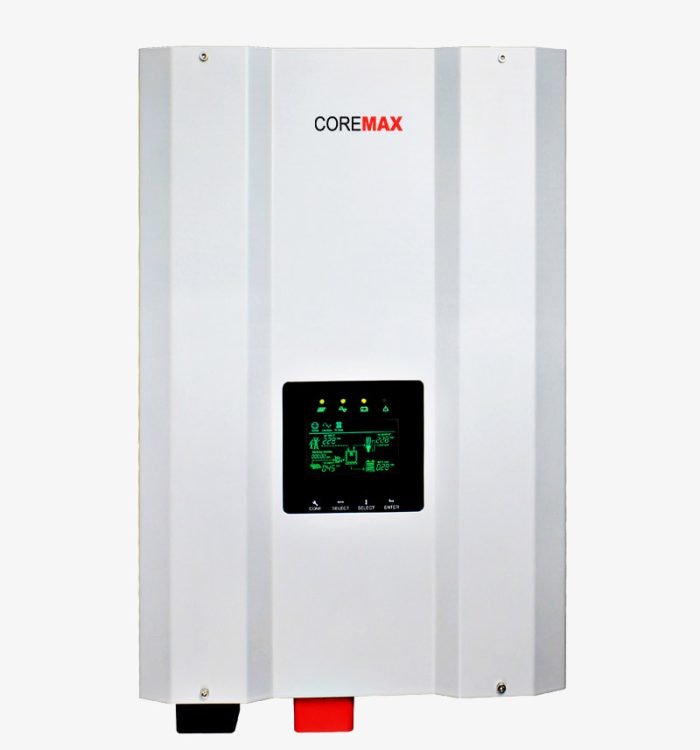

Different from Mpp LV6548. This Coremax inverter 48v is a low frequency inverter. Which means it has much longer service life the LL 6845.

48v split phase inverter 240v/120v

This low frequency inverter provide max 10kw power. as it is a split phase inverter developed and design for USA market. So no matter you need 120v AC or 240v. This will be the best choice.

Low-frequency inverters have the advantage over high-frequency inverters in two fields: peak power capacity, and reliability. Low-frequency inverters are designed to deal with higher power spikes for longer periods of time than high-frequency inverters.

In fact, low-frequency inverters can operate at the peak power level which is up to 300% of their nominal power level for several seconds, while high-frequency inverters can operate at 200% power level for a small fraction of a second.

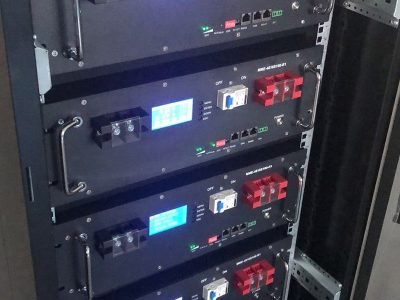

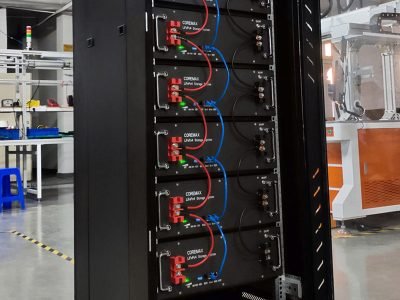

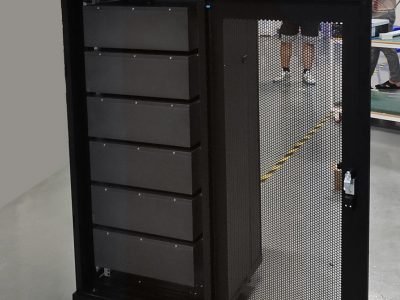

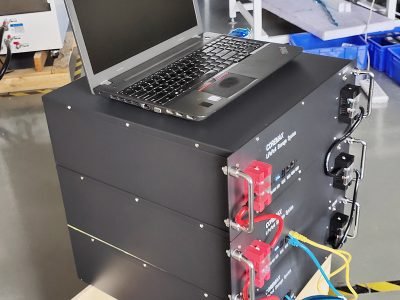

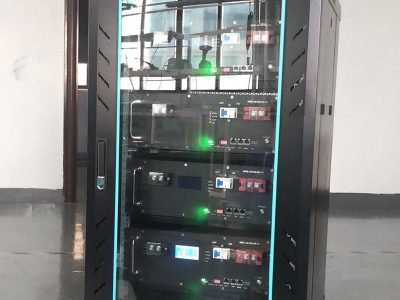

Server rack LiFePo4 Battery system

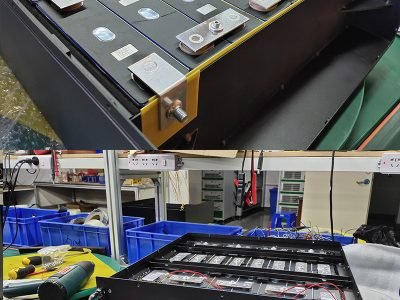

This Battery system is build by Lithium ion LifePo4 cells. 16S1P. Nominal voltage 51.2v. It has very long cycle life. Rated cycle time over 8000. Coremax is a professional battery manufacturer from China. So, make order with coremax directly could save you alot on battery storage system. Contact us for the latest price.

Split Phase Voltage

The world’s power distribution systems use alternating current, or AC, in which the electrical current alternates direction many times a second. This is because transformers allow AC to be easily raised to a very high voltage for long-distance transmission, and then lowered back down for use. Voltage is like water pressure; it measures “how hard” the electrons are pushing. Like water pressure behind a tap that is turned off, voltage doesn’t go away when the switch is off — it’s still there, behind the switch. Even with voltage, if they have nowhere to go electrons will not flow and no useful work will be done. However, with the “tap” on, electrons that are pushing harder can do more work each. So, higher-voltage systems can get more work done with less electrical current.

In an alternating-current system, typical household appliances are connected to a “live” wire, which has an alternating voltage and a “neutral” wire, which neither pushes nor pulls electrons. Neutral is necessary, though, to complete the path that electrons take. I’m tempted to refer to this as something like a sink drain, but I may have pushed (or pulled) the metaphor too far!

120V/240V Split Phase

120/240 Vac split phase is a type of single-phase three-wire mid-point neutral power distribution system commonly found in America with a standard phase-neutral voltage of 120 Vac for residential and light commercial applications. The phase to phase( Live to Live) voltage is 240Vac for heavy industrial loads such as compressors, fridge, and pumps. Because of the 120-0-120 voltage configuration, it is also sometimes referred to as dual-phase, 2 phase / two-phase or even mistakenly, single-phase 220Vac.

North American homes are not wired up with a single live wire, but two. The difference between them is that when one is pushing, the other is pulling, and vice-versa. The “normal” appliances and outlets in a house are divided amongst the two live wires, and all are connected to neutral. Because the voltage difference between a single live wire and neutral is alternating with a magnitude of 120V, appliances that run on 120V power can be connected to the neutral wire and either of the two live wires.

Very power-hungry appliances can be built more efficiently if they can run on 240V. With twice the voltage, they can receive twice the amount of power with the same amount of current. This allows the use of thinner and less expensive wires. Appliances like this are connected to both live wires. Because one is pushing while the other is pulling, the voltage difference between them is twice the difference between a single live wire and neutral. In the graph below, you can see what this looks like: A positive voltage below indicates the line is “pushing,” and a negative one indicates it’s “pulling.” The difference between two lines is what determines how much electrical “pressure” there is between them.

how to connect split phase
